Nonsolvent Laminating Machine
[ Nonsolvent Laminating Machine ]
The biggest advantage of the solvent-free laminating equipment using a urethane-based materials and hardener is that it can realize an eco-friendly process because it does not require a solvent. This equipment bonds films using a urethane materials and hardener, and since there is no solvent, there are no harmful substances emitted during the work, contributing to environmental protection. In addition, the solvent-free process has excellent cooling efficiency, so it quickly stabilizes after the laminating work, improving production speed. It provides high-strength adhesiveness and excellent durability, enabling high-quality film bonding work in various industries. This equipment is an essential choice for modern production processes that value sustainability.
Product Information
SPECIFICATION
-
Type of Material
OPP, PET, LDPE, LLDPE -
Web Width
1,200~2,000mm -
Kind of Web
Plastic flims & AL foil -
Guide Width
1,300~2,100mm -
1st Unwind Dia
Max Ø800 / Center / Turret type -
Machine Speed
Max. 400m/min -
2nd Unwind Dia
Ø800 / Center / Turret type -
Type of Coating
4ROLL & 5ROLL Type -
Rewiding Dia
Ø800 / Center / Turret type -
Main Drive Motor
AC servo motor
* Please use the specification for reference only.
Main Features
-
4-Roll / 5-Roll Coating Unit
-

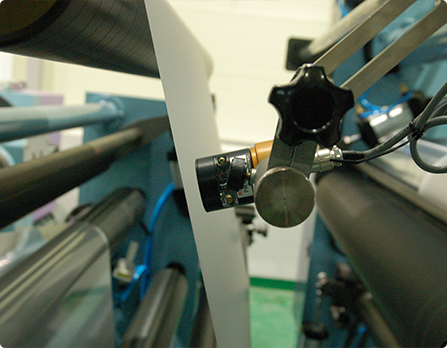

Web Guiding(E.P.C) System
-

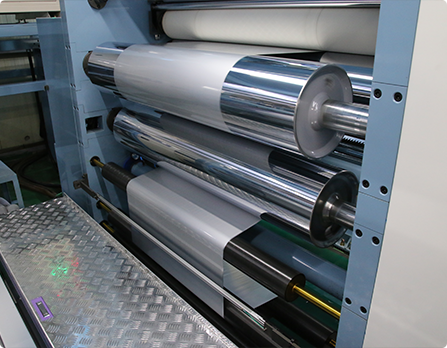

Heating / Cooling Roll Unit
