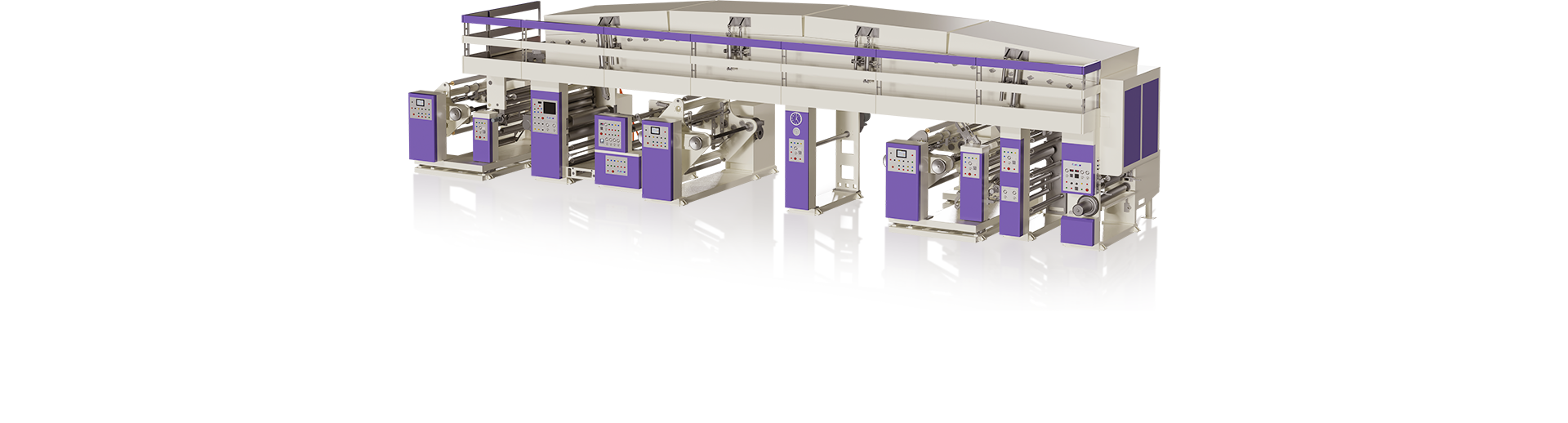

Dry Laminating Machine
[ Dry Laminating Machine ]
The dry laminating is a process that bonds film or other materials by using solvent, and is characterized by providing excellent adhesion. The solvent helps to distribute the adhesive evenly and ensures a high-quality bonding effect. This method is applicable to various films and materials, and is especially suitable for applications requiring strong bonding strength, such as packaging materials, labels, and industrial materials. The dry laminating is an important process that improves the quality of the final product by providing excellent adhesion and durability.
Product Information
SPECIFICATION
-
Type of Material
OPP, PET, LDPE, LLDPE, Lylon -
Web Width
1,200~2,000mm -
Kind of Web
Kind of Web Plastic flims & AL foil -
Guide Width
1,300~2,100mm -
1st Unwind Dia
Max Ø800 / Turret type -
Machine Speed
Max. 250m/min -
2nd Unwind Dia
Ø800 / Turret type -
Type of Coating
Gravure coating type -
Rewiding Dia
Ø1000 / Turret type -
Main Drive Motor
AC Vector motor
* Please use the specification for reference only.
Main Features
-

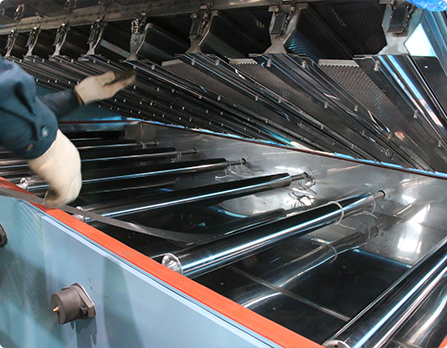

Dry Chamber Unit
-

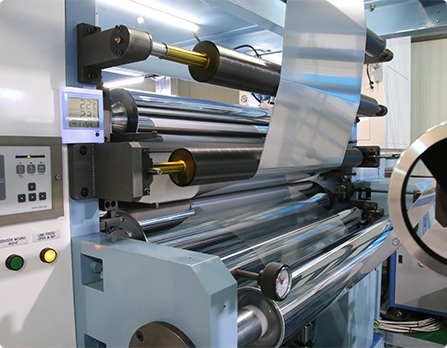

Laminating Unit
-

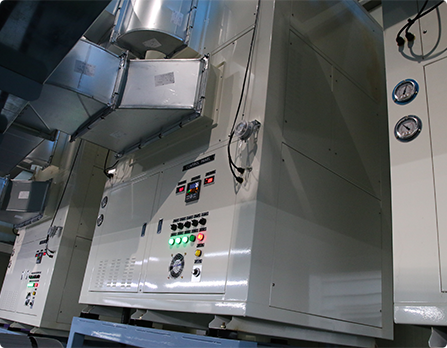

E-saver Blower Unit
