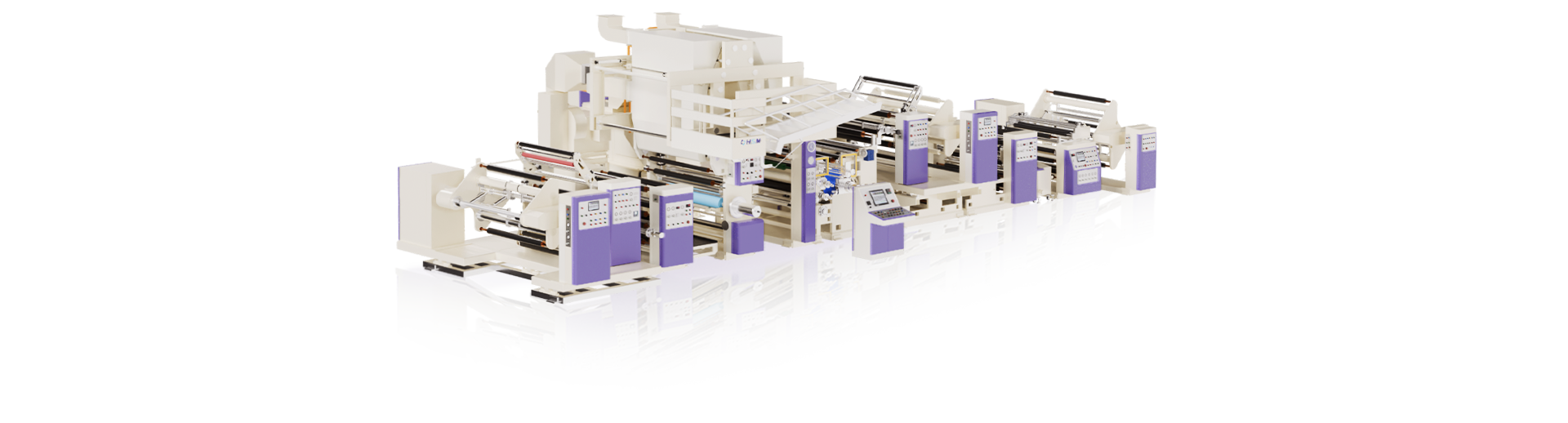

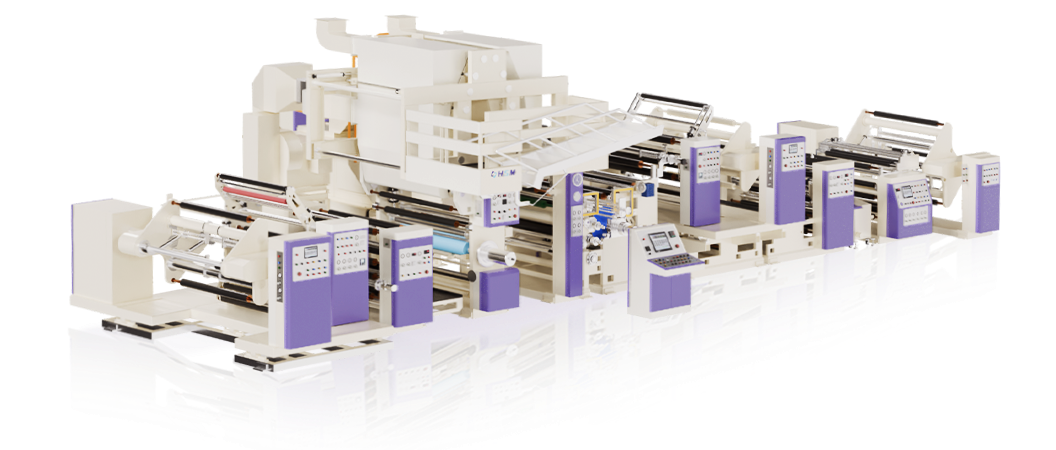

Extrusion Coating Laminating Machine
[ Extrusion Coating Laminating Machine ]
The extrusion coating and laminating machine produces high quality composite materials through coating and laminating work on various materials. This equipment is applicable to various materials such as film, paper, aluminum and nonwoven, in particular, plays a key role in packaging materials, industrial materials and special application fields. The high speed extrusion coating systems and multi-layer laminating systems provide precise control and high productivity, and automated raw material supply and energy saving design allows effective work. In addition, the design that considers safety and maintenance guarantees the worker’s safety, and enables sustainable operation. This equipment is the optimized choice that can perform high quality coating and laminating, which are essential in various industrial fields, rapidly and effectively.
Product Information
SPECIFICATION
-
Type of Resin
PE, EVA, PP, Etc -
Guide Width
1,300~2,100mm -
Kind of Web
Plastic films & AL foil, Paper -
Machine Speed
Max. 250m/min -
1st Unwind Dia
Max Ø800 / Turret type -
Extruder
Single / Co-extruder -
2nd Unwind Dia
Ø600 / Turret type -
Extruder L/d
30:1 ~ 36:1 -
Rewind Dia
Ø1000 / Turret type -
Cooling Roll Dia
Ø600 -
Web Width
1,200~2,000mm -
Main Drive Motor
AC Vector motor
* Please use the specification for reference only.
Main Features
-

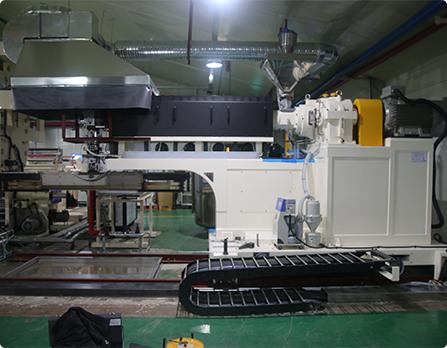

Single Extruder Unit
-
Cooling & Nip Roll Unit
-
Gravure Coating Unit
