W-Type
[ W-Type ]

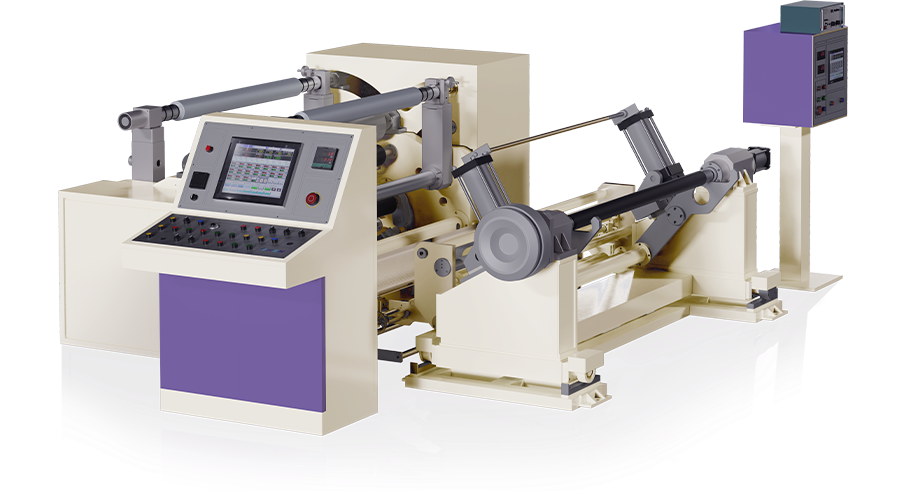

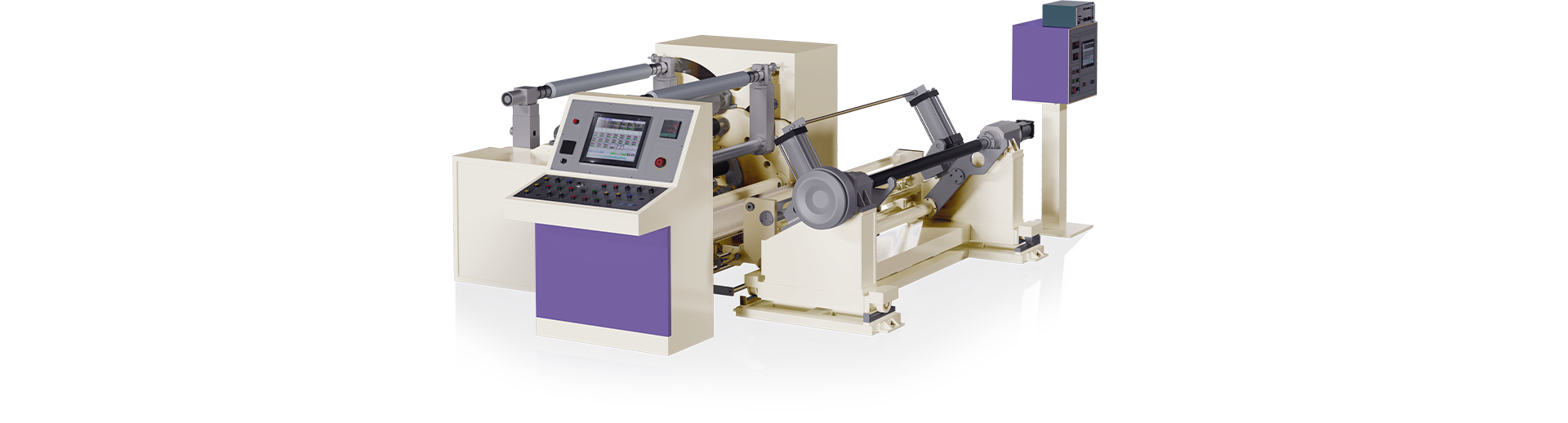

The W type slitter is designed to effectively respond to fabrics which can be precisely cut into small-width. This slitter provides stable performance in the work environment that requires high precision, and can process various width fabrics, enabling multipurpose utilization. In particular, it can maintain consistent cutting quality even in irregular fabric, and is suitable to the production process that requires high quality results.
Product Information
SPECIFICATION
-
Kind of web
Laminated flim, Paper, Etc -
Guide width
1,300~2,100mm -
Unwind Dia
Max Ø1000 -
Machine speed
Max. 350m/min -
Rewind Dia
Ø500 -
Knife Type
Razor / Ring Knife -
Web width
1,200~2,000mm -
Main drive motor
AC motor
* Please use the specification for reference only.
Main Features
-

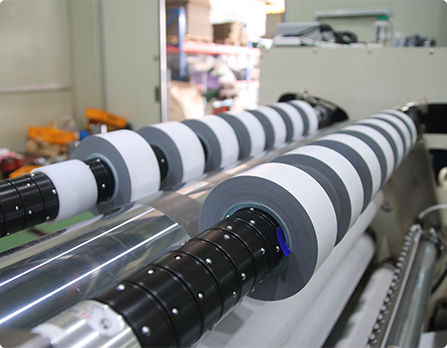

Rewind Unit
-

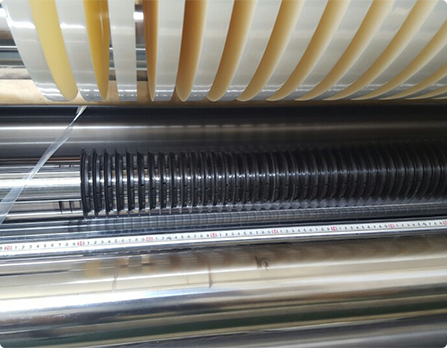

Slitting Knife Unit
-

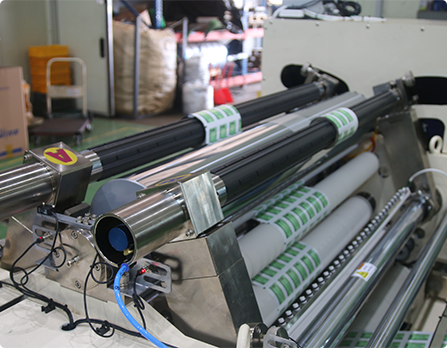

Near Roll Unit
