HF-Type
[ HF-Type ]

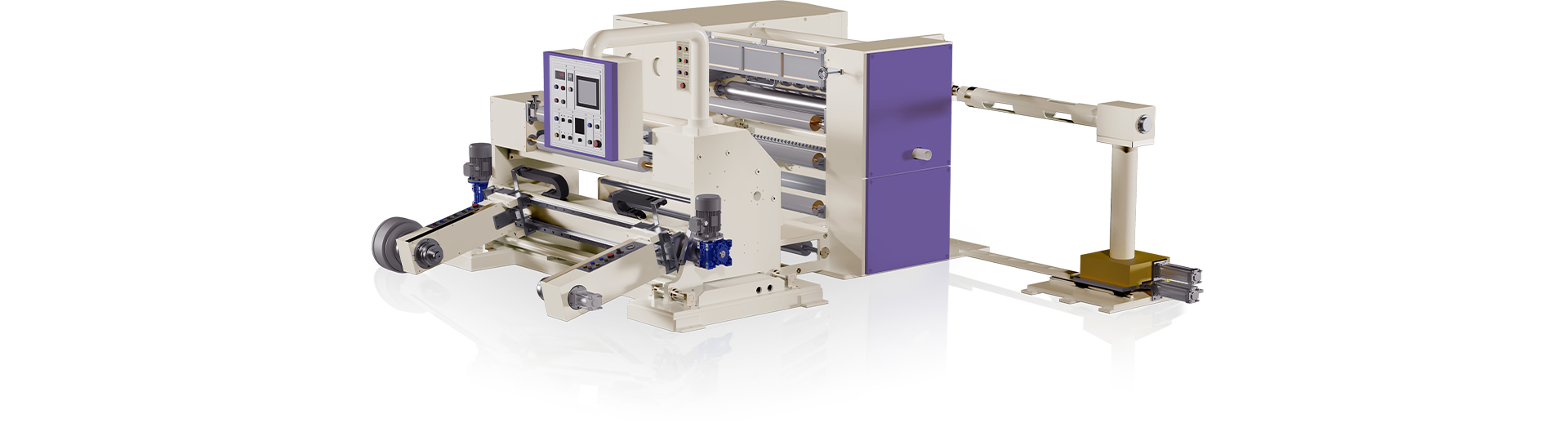

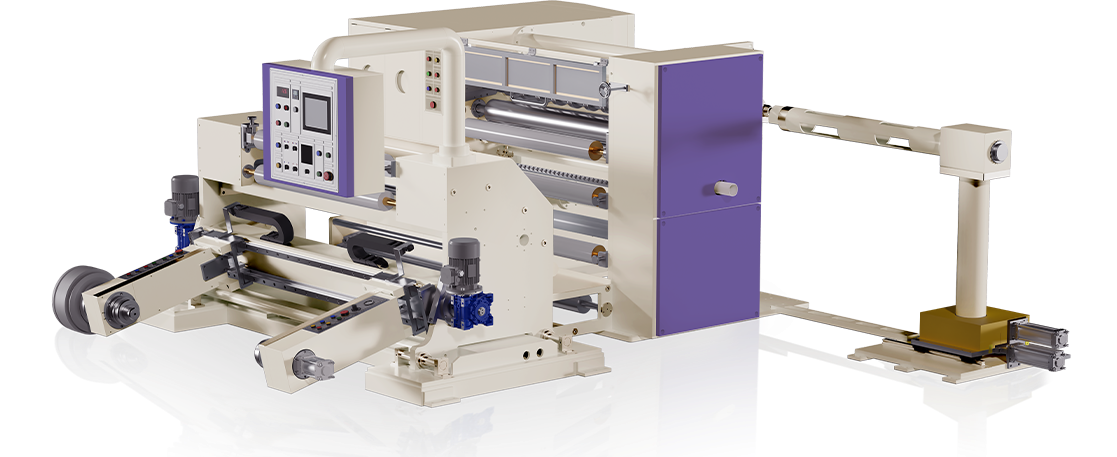

The HF type slitter is an equipment that can perform precise and effective slitting work by using servo motor mainly. This slitter is designed to accommodate a variety of products, and can process materials such as various films and papers. In addition, unloading unit is mounted, maximizing the worker’s convenience, which can improve work efficiency and producibility significantly. The HF type slitter is the choice optimized to production environment that needs precise control and rapid work switching.
Product Information
SPECIFICATION
-
Kind of web
Laminated flim, Paper, Non woven, Etc -
Guide width
1,300~2,100mm -
Unwind Dia
Max Ø1200 -
Machine speed
Max. 350m/min -
Rewind Dia
Ø800 -
Knife Type
Razor / Ring Knife -
Web width
1,200~2,000mm -
Main drive motor
AC Servo motor
* Please use the specification for reference only.
Main Features
-

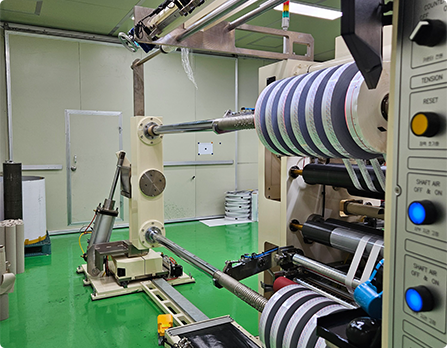

Unloading Unit
-

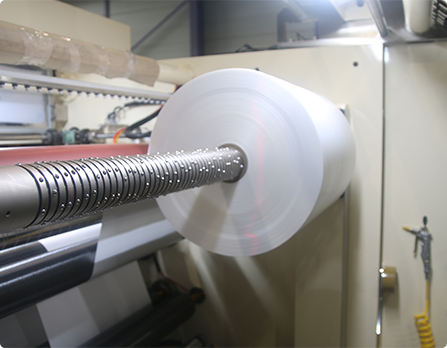

Friction Shaft Rewind Unit
-
Slitting Knife Unit
