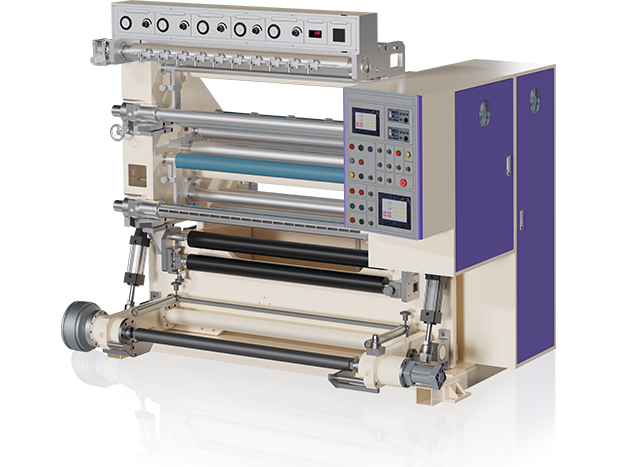

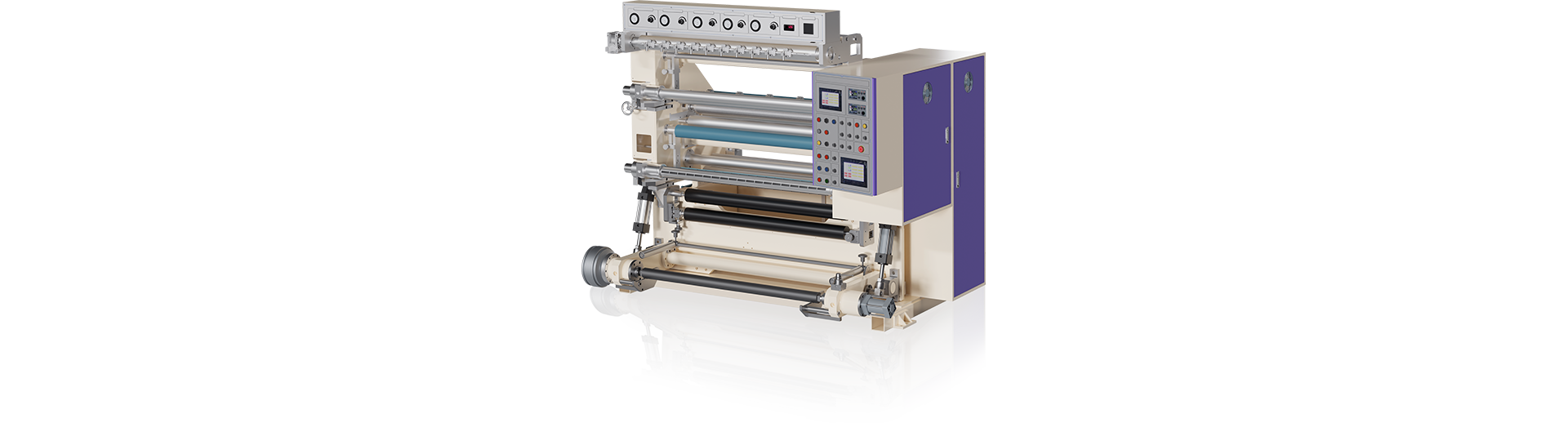

F-Type
[ F-Type ]
The F type slitter is the most general slitter equipment that can be used for various films and papers. This equipment provides precise cutting performance, and can slit films and papers of various thicknesses and materials quickly and precisely, enhancing the production efficiency. In particular, it is widely used for the manufacturing processes such as packaging materials, labels and industrial materials, and is designed to maintain the stable and consistent quality.
Product Information
SPECIFICATION
-
Kind of Web
Kind of Web Laminated flim, Paper, OPP, PET, CPP, Etc -
Guide Width
1,300~2,100mm -
Unwind Dia
Max Ø760 -
Machine Speed
Max. 350m/min -
Rewind Dia
Ø530 -
Knife Type
Razor / Ring Knife -
Web Width
1,200~2,000mm -
Main Drive Motor
AC motor
* Please use the specification for reference only.
Main Features
-

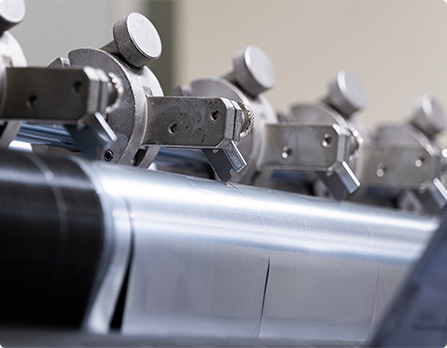

Slitting Knife Unit
-
Laser Core Position Unit
-

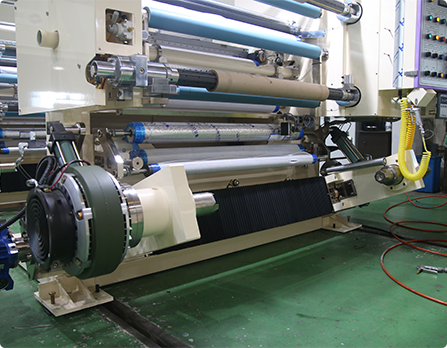

Shaftless Unwind Unit
